Description
Brand new

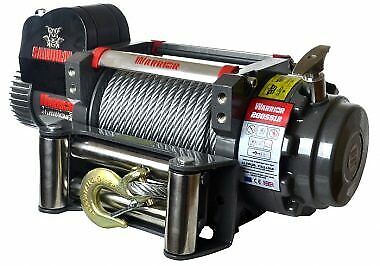

– WARRIOR SAMURAI S9500 12v Winch
The WARRIOR SAMURAI
S9500 is a Compact, Tough winch with Heavy duty sealed contactors and Stainless
steel fairleads and fittings ensure its protected against the elements. The Latest version 2 of the S9500 features the new high output 4.6 Hp series wound motor and four stage planetary
gearing for extra strength and durability. Good for all off road needs.
Features:
- *4 Pin Waterproof Connector
- *Solid Brass Contacts Direct to the Motor
- *Silver Copper Motor with *Copper Brush Holders
- *Chip Resistant Powder Coated Finish
- *Extensive Waterproof Sealing to IP68 Standard
- *Removable Heavy Duty Hook
- *Wireless 2.4G Upgraded Remote (12V only)
- *Stainless Steel 4 Way Fairleads
- *HRC50 Full Steel Gears
- *Revolutionary Design *External Brake
- *Laser Etched Extruded Aluminium Tie Bars
- *600 amp Silver Tip Contactor
Technical
Specification:
|
Weight: |
40kgs |
|
Voltage: |
12v DC |
|
Capacity: |
9500 lb |
|
Motor: |
Powerful, Reliable Reversible |
|
Gearing: |
Specially treated 4 stage |
|
Gear |
210:1 |
|
Rope: |
29m of 8.0mm galvanized |
|
Dimensions |
560mm x 155mm x 220mm |
|
Wireless |
Included |
|
Mounting |
Not |
|
Line |
5.4 m/min |
|
Line |
1.8 m/min |
|
Amp |
80 amps |
|
Amp |
360 amps |
